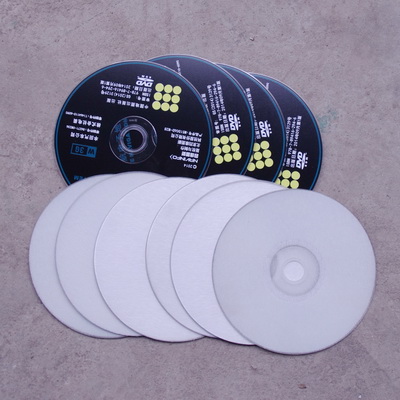

This system is for remove the waste DVD compact disc metallized coating and surface printing.

The DVD disc is a very good PC basic material, we need get this material by use environmental protection method. Use our machine is the best solution.

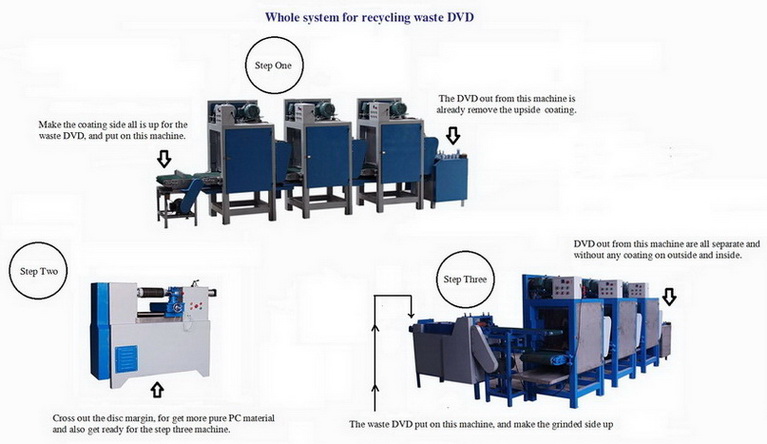

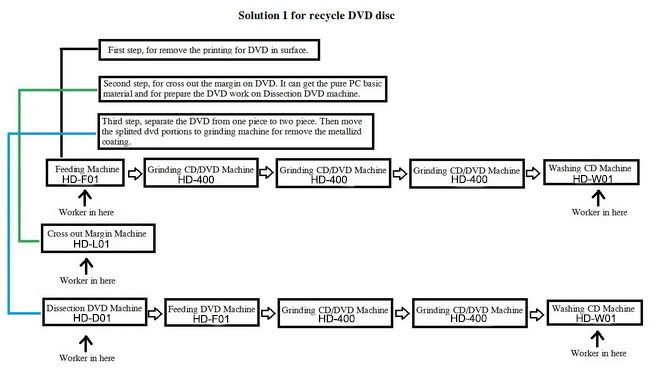

This waste DVD recycle system is include:

1. One set Feeding CD Machine .This machine is for sending the waste CD  to the Grinding CD&DVD Machine. It can made a suitable distance for each CD&DVD, for ensure the machine running well.

2. Six piece Grinding CD&DVD Machine. This machine is for remove the metallized coating and printing on the disc surface, for get the pure PC disk.

3. Two set Washing CD Machine. This machine is for clean the metallized coating and printing cover from the waste DVD, by water and the brush. Then can get the dry and clean clear disc from this machine.

4. One set Air pressure turning lathe Machine, it easy cross out the margin from the waste compact disc.

Cut off the margin, is easy for separate the DVD disc by Dissection Machine. So this step is prepare for the DVD disc run on Dissection Machine. Another reason for Cut off the margin for the disk is: there is some glue on the margin when DVD production.

5. One set Dissection DVD Machine, this machine is for split up the DVD from one piece to two piece.

6. One set Feeding DVD Machine. This machine is a conveyor , for feeding the dvd from Dissection DVD Machine to Grinding CD&DVD Machine. The waste dvd disc after out of Dissection DVD Machine is two piece, in up and down, so Feeding DVD Machine is make up by two conveyer belt in up and down.

Notice:

1. Working space requirement for one production line: 150~200 sq.m

2. The Air pressure turning lathe Machine need work with an air compressor, Customer can buy from the local market or order from us.

3. This system need work with water and a water pool, water pool requirement is about 10 cubic meter for 1~3  production line. Water pool need work with water pump.

or recycle DVD :

Put DVD to the Dissection Machine for split up the DVD two piece. See video from: https://youtu.be/lLtJ-MECNyE

Then put these split up DVD to the Feeding CD Machine, then same process for recycle CD.

If the DVD with printing , also need put the printing side to the machine working site (up) for clean the printing.

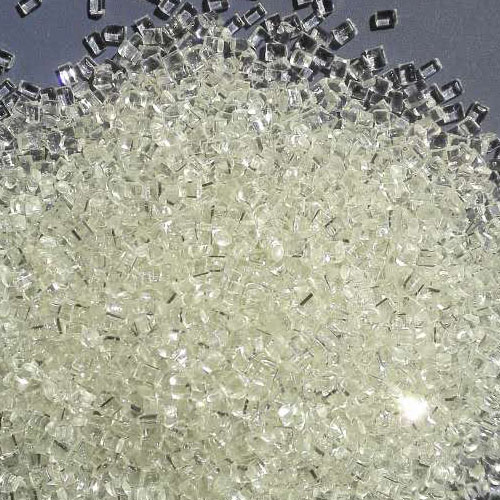

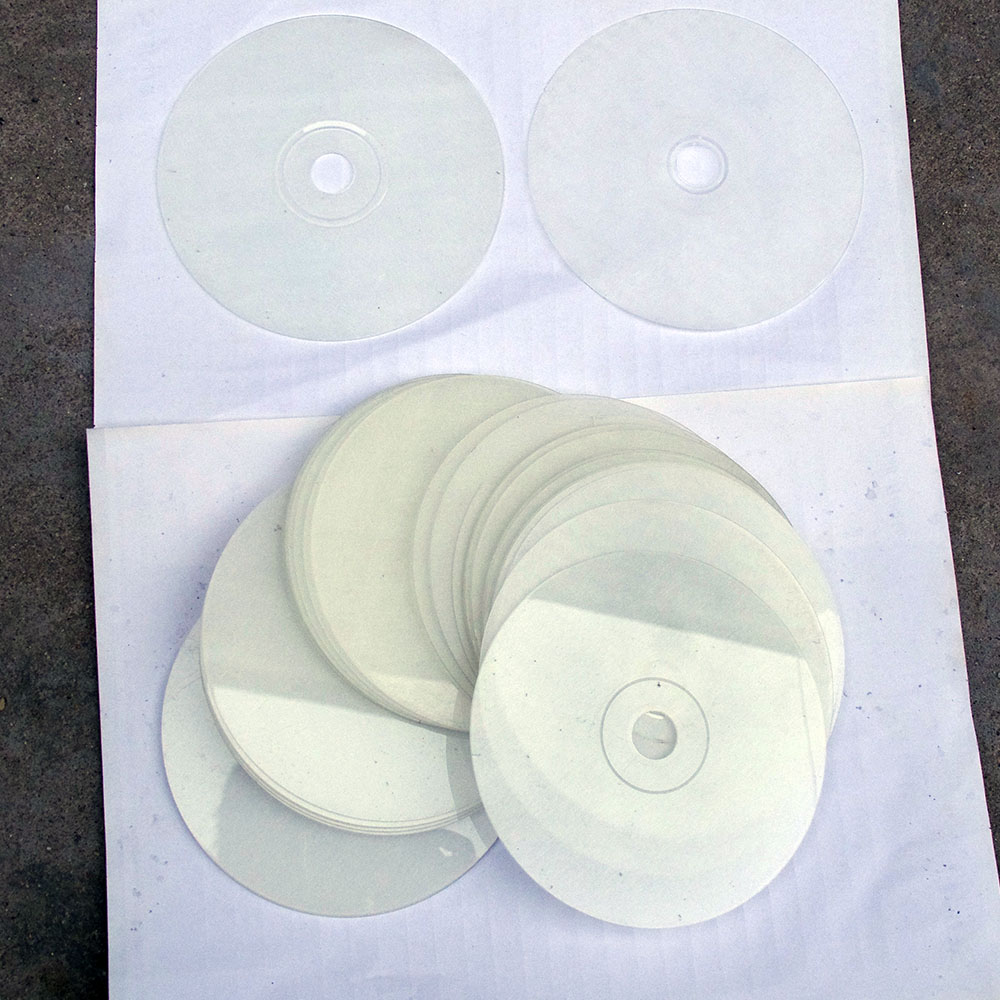

The DVD after pass these machine, is the basic pure PC material.

To see the  Grinding CD Machine working please visit    https://youtu.be/pn55J5iCTvw

To see the Cross out Margin Machine working please visit    https://youtu.be/enGY9e7YpOs
Air pressure turning lathe HD- L01 means Cross out Margin Machine

To see whole system work for DVD please visit    https://youtu.be/Gv7Di5R4U2s

This system is environmental system, without any pollute!

In china, there is professional company for purchase the sediment of metallic from the water pool of the recycle CD factory. Because it can epurate aluminum or silver.

The water from the pool are cyclic utilization.

The metallic sediment can sell, can refine aluminum or silver.
