Description:
1. Smart machine, easy control
2. Can grind out the cd/dvd coating, grind out the coating for wood based pane.
3. The grinding machine workshop require a water pool about 10 cubic meter, the water can recycle use. The crumbs for the water can extract and purify silver.
4. One production line require 3 person for control.
5. One production line working 8 hours can made 1500~2000 KGS material.
6. Effective percentage is 95%. It means, for 1000 kgs material(CD), after use this machine can get 950 kgs pure polycarbonate material.
Operation:
Make the paint up for the CD, then folded. Every time put two stack CD on the feeding disc machine. When see the CD to be little, put another two stack CD on feeding machine. All the CD after pass the three set grinding machine will go to the Wash CD Machine.

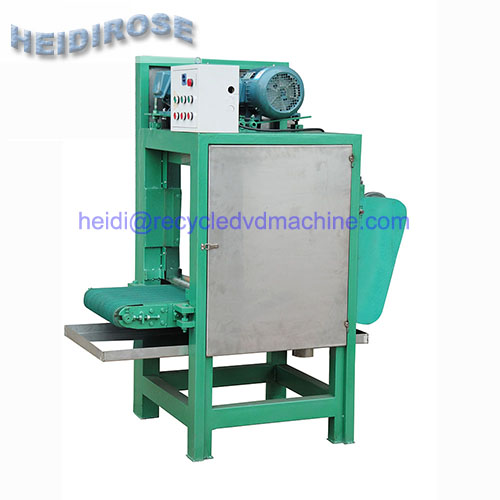

Specification | Grinding CD/DVD Machine |
Model | HD-400 |
Net Weight (without motor) | 400 kgs/piece |
Work space requirement | for one production line: 150~200 sq.m |
Pool requirement | about 10 cubic meter for 1~3 production line |
Motor power | 6 kw ( require two motor for one machine, one motor is 3 kw ) |
Gear motor power | 0.75 kw ( require one gear motor for one machine ) |
Machine Size | 1250*750*1550mm |
| |
| |
